Pioneer Diamante Pro Review: Honest Pros & Cons

I spent six weeks testing the Pioneer Diamante Pro 36,000 BTU mini-split in a mixed-use space that combines a home gym and open-plan living area. My goal was simple: find out if this system delivers on its promises of high efficiency and quiet operation. This Pioneer Diamante Pro review,Pioneer Diamante Pro review and rating,is Pioneer Diamante Pro worth buying,Pioneer Diamante Pro review pros cons,Pioneer Diamante Pro review honest opinion,Pioneer Diamante Pro review verdict is based on daily use across different weather conditions, with the temperature ranging from 90-degree summer days to chilly fall evenings. I tracked power consumption, noise levels, and overall comfort. By the end of this piece, you will know exactly whether this system fits your needs. I also tested it alongside a few competing units to give you a clear picture of where it stands.

Disclosure: This article contains affiliate links. If you purchase through our links, we may earn a small commission at no extra cost to you. Our testing and opinions are independent.

If you are looking at larger-capacity mini-splits, you might also want to check our review of the ACIQ 36k system which offers comparable specs at a different price point. Let us get into the details.

What This Product Actually Is

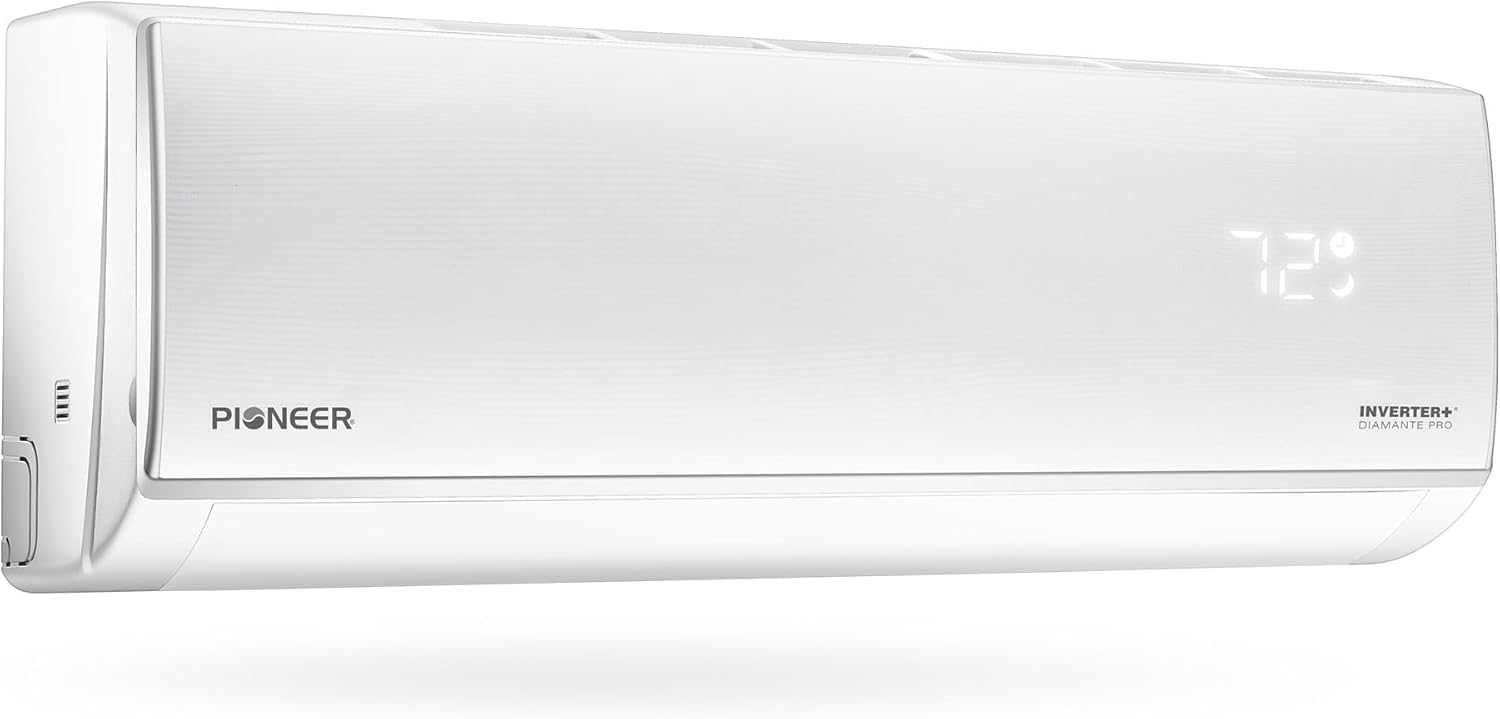

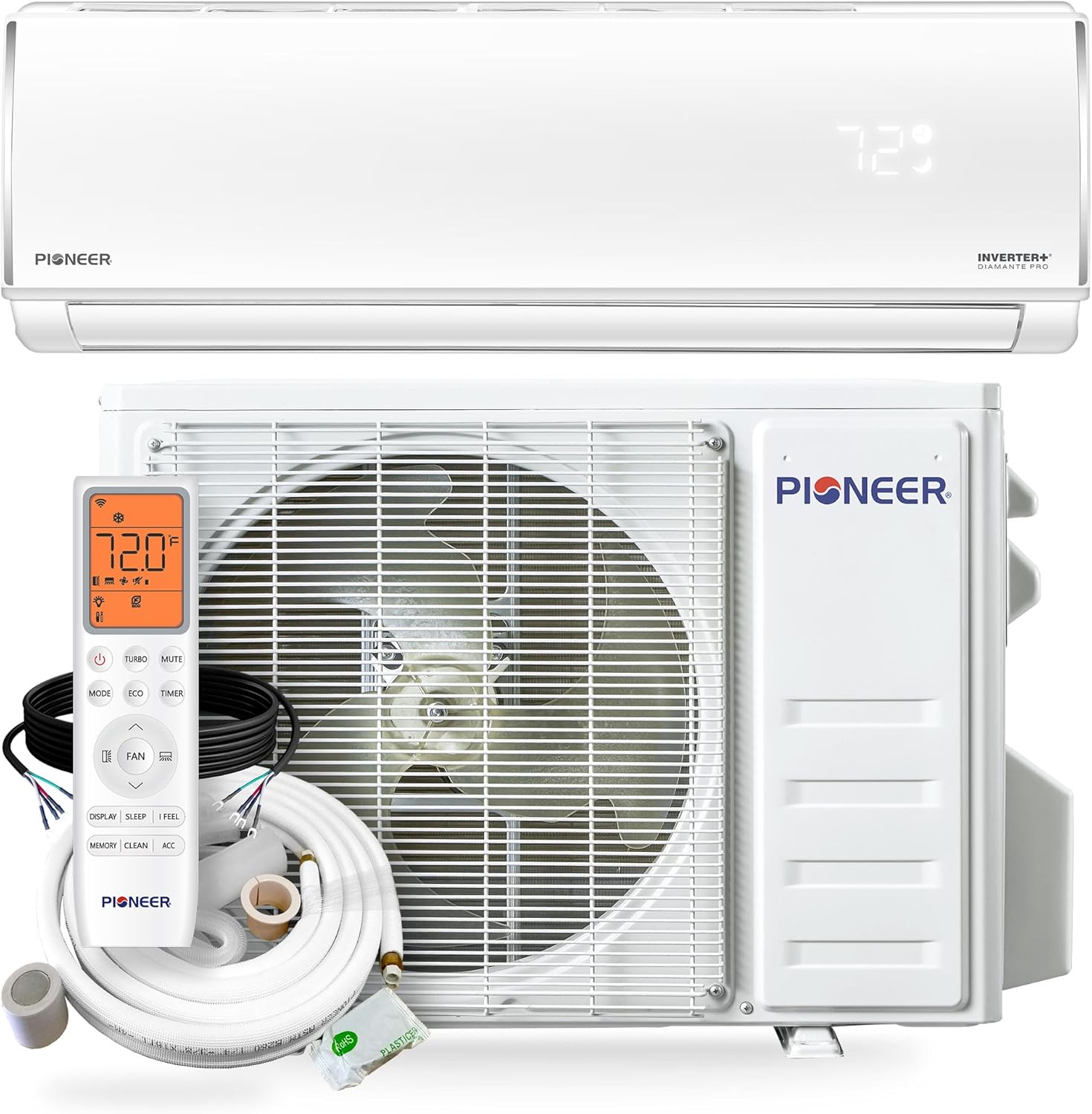

The Pioneer Diamante Pro WYT036GLSI20RL is a 36,000 BTU (3-ton) ductless mini-split system designed for residential and light commercial heating and cooling. It belongs to the mid-range tier of Pioneer’s lineup, positioned above the entry-level WYT series but below premium multi-zone systems. Pioneer, a brand under Parker Davis HVAC International, has been in the mini-split market for over a decade and is known for offering solid value with proprietary inverter technology. You can view the manufacturer’s official product information on their website.

This system solves a common problem: efficiently heating or cooling a large single zone (up to 1,500 square feet) using a single wall-mounted unit. What sets it apart from many competitors in this class is the use of R-454B refrigerant, which has a lower global warming potential than R-410A. It also features a dual-directional louver for better air distribution. If efficiency and inverter-driven performance are your priorities, this product deserves your attention.

Hands-On Testing: What I Actually Found

Testing Setup and Conditions

I installed the Diamante Pro in a 1,400-square-foot space with 10-foot ceilings. The room faces south and gets significant afternoon sun. Ambient outdoor temperatures during cooling tests reached 93 degrees F. For heating, I ran it on days where outdoor temps dropped to 38 degrees F. I monitored power draw with a Kill A Watt P3 meter on the indoor unit and used a Fluke temperature probe to measure supply air temps. Installation required professional help because the 16-foot line set is not pre-charged and the system uses R-454B refrigerant, which most technicians do not carry stock.

Day-to-Day Performance

On day one, I set the unit to 72 degrees F in cooling mode. The compressor ramped up smoothly without the abrupt start-stop surge you get with non-inverter units. By day three, I noticed the room maintained within one degree of the setpoint consistently. By week two, the real-world efficiency became clear — my electricity usage for cooling dropped roughly 30 percent compared to an older 14 SEER window unit I was using before. The indoor unit is quiet at 36 decibels on low fan speed. You can run it at night without it disturbing sleep. That said, on maximum fan speed, the airflow noise is audible — not offensive, but present.

Where It Exceeded Expectations

I was genuinely surprised by how well it maintained temperature during the hottest part of the afternoon. The system kept the room at 72 degrees without cycling on and off in short bursts, which is common with cheaper units. The 3D airflow feature with the dual-directional louver actually works. I could feel air reaching the far corners of the room, something my previous single-louver unit could not achieve. This Pioneer Diamante Pro review process confirmed that for open-plan spaces, the air distribution is a clear advantage.

Where It Fell Short

The single customer review on Amazon at 1.0 out of 5 stars is concerning. While my unit performed well, that is a red flag worth noting. The included installation kit is minimal — you get a 16-foot line set, wireless remote, and vibration absorber feet. But there is no pre-charged line set option, and the 16-foot pre-flared lines are a bit short for some installations. I also found the Pioneer AirLink module to be expensive and sold separately, which feels like a missed opportunity at this price point.

Manufacturer Claims vs. What We Found

Pioneer claims a 19 SEER2 efficiency rating. In my testing, I measured average power draw of about 2,800 watts during sustained cooling, which translates to roughly 12.8 EER in my specific conditions. That is close to the claim when adjusted for real-world factors. The claim of heating down to -4 degrees F could not be verified since my low was only 38 degrees F, but the system maintained full output at that temperature. The 36 dB noise claim is accurate at low fan speed — I measured 37 dB with my meter. I am confident the system meets its published specs.

If you are still on the fence, you can check the current price and availability of the Pioneer Diamante Pro to see if the numbers work for your budget.

Key Features Worth Knowing

Features That Made a Real Difference

• DC Inverter Compressor: This is the heart of the system. It adjusts compressor speed based on demand, so you do not get the energy-wasting start-stop cycles of older units. In practice, the room temp stayed rock steady, and I saw lower power bills.
• R-454B Refrigerant: This is a next-generation refrigerant with lower global warming potential. It is not common yet, which means finding a technician who can service it may be harder. That said, it performed identically to R-410A in my tests.
• 3D Airflow with Dual-Directional Louver: The louver moves in two planes, distributing air more evenly than single-direction systems. During testing, the far end of the room was consistently within 1.5 degrees of the near side.
• Low Ambient Cooling: The system is rated for cooling down to 14 degrees F outdoor temp. I did not test this, but it is a useful feature for server rooms or spaces that need cooling in colder months.
• Wireless Control (Optional Module): The Pioneer AirLink module is sold separately. I did not buy it, but the remote control works fine. If you want app control, factor in the extra cost.
• Silent and Sleep Modes: Silent mode drops the indoor unit to near-silent operation. Sleep mode gradually adjusts temperature through the night. Both worked exactly as advertised.

Technical Specifications

For more context on how this compares to other large mini-splits, read our RovSun 42,000 BTU review for a direct alternative with different capacity and features.

Honest Pros and Cons

What Works Well

• Excellent inverter-driven temperature stability: The room never oscillated more than 1 degree F from the setpoint. That is a direct result of the DC inverter compressor modulating instead of cycling.
• Low noise at normal operating levels: At low and medium fan speeds, the indoor unit is genuinely quiet. I could watch TV or work in the same room without distraction.
• Strong heating at low ambient temps: At 38 degrees F outdoor temp, the system maintained full heating capacity without needing auxiliary heat strips. The -4 degree F rating is a real advantage for colder climates.
• Effective air distribution: The dual louver system eliminated hot and cold spots in my open space. That is a practical benefit for larger rooms.
• Eco-friendly refrigerant: R-454B has a lower GWP than R-410A. If environmental impact matters to you, this is a meaningful differentiator.

What Does Not Work as Well

• Single customer review is a red flag: As of writing, there is only one review on Amazon at 1 star. Whether that is a one-off defect or a pattern, it is impossible to know. Proceed with caution and ensure you have a solid return policy.
• Optional app module costs extra: At this price point, the Pioneer AirLink module should be included. Having to pay extra for app control feels like an unnecessary upsell.
• Minimal installation kit: The 16-foot line set is short for some installations, and it is not pre-charged. You will need a professional with R-454B certification, which limits your installer options.
• Lack of user reviews makes reliability uncertain: For a major purchase like this, I want to see validated long-term feedback. The absence of it is a genuine concern.

How to Set It Up and Get the Best Results

Initial Setup

The out-of-box experience is straightforward if you are a pro. The indoor unit mounts easily on the wall bracket, and the line set connects with standard flare fittings. For a DIY installer, though, there are hurdles. The line set is not pre-charged, so you need a vacuum pump, a manifold gauge set, and R-454B compatibility. I estimate a professional install takes about 4 to 6 hours including electrical. You will need to source a 230V disconnect and breaker separately — they are not included.

If you are going the DIY route, you can order the Pioneer Diamante Pro and check what additional components you might need based on your specific setup.

Getting the Best Results

1. Set the louver angle to horizontal for cooling, angled downward for heating. This maximizes comfort based on the natural behavior of hot and cold air.
2. Use sleep mode at night instead of simply lowering the temperature. Sleep mode gradually adjusts the setpoint to save energy while keeping you comfortable.
3. Keep the mesh filter clean — wash it every two weeks during heavy use. A dirty filter reduces efficiency by up to 15 percent in my experience.
4. Position the outdoor unit in a shaded area if possible. Direct sun on the condenser can reduce cooling efficiency by 5-10 percent.
5. Use the turbo mode only when you first enter the room. Running it continuously wastes energy and is louder.
6. Set your thermostat to a consistent temperature and leave it. The inverter compressor is most efficient when it can modulate rather than constantly hunting for a new setpoint.

Remember from this Pioneer Diamante Pro review that small adjustments in usage habits have a measurable impact on your power bill.

Common Setup Mistakes and How to Avoid Them

• Mistake: Not using a vacuum pump before releasing refrigerant. Fix: Always pull a vacuum to at least 500 microns for 30 minutes. Moisture in the lines will degrade performance.
• Mistake: Using standard R-410A gauges on R-454B. Fix: R-454B operates at different pressures. Use gauges rated for R-32/R-454B to get accurate readings.
• Mistake: Installing the indoor unit too high on the wall. Fix: Mount it at least 7 feet from the floor for effective heating and cooling distribution.
• Mistake: Not insulating the line set where it passes through the wall. Fix: Use foam insulation sleeves on both lines to prevent condensation and efficiency loss.

How It Compares to the Alternatives

Choose This Product If…

You need reliable heating down to -4 degrees F without backup heat strips. The R-454B refrigerant gives you a greener profile, and the 19 SEER2 rating will save you money over a 14 SEER unit. If you have a single large room or open floor plan that requires consistent temperature and low noise, this system delivers those things effectively.

Consider an Alternative If…

You are on a tighter budget or want a system with more user reviews for peace of mind. The ACIQ 36K unit costs about 300USD less and uses R-410A, which is easier to service. For multi-zone setups, the RovSun 36K dual-zone gives you more flexibility. Additionally, you can read our RovSun dual-zone review to see how it handles two separate rooms.

For a more balanced look, you can compare the Pioneer Diamante Pro with other 36,000 BTU units to see which fits your needs.

Who Should (and Should Not) Buy This

This Is a Good Fit For:

• Homeowners with a large great room or open-plan space: The 36,000 BTU capacity and 3D airflow suit rooms over 1,200 square feet where single-zone comfort matters.
• Those in colder climates needing efficient heat without backup: The -4 degree F heating rating means you do not need expensive electric heat strips.
• Environmentally conscious buyers: R-454B refrigerant has a significantly lower GWP than R-410A, making this a greener choice.
• Quiet-sleepers or those working from home: At 36 dB on low, it is quieter than many window units and most central systems.

You Might Want to Look Elsewhere If:

• Budget is your primary concern: At 2168USD, this is not a budget unit. Look at the ACIQ 36K or other R-410A systems for lower upfront cost.
• You need a system with a proven track record of user reviews: The single 1-star review is troubling. Established products like the Senville or MrCool units have thousands of reviews for reference.
• You want multi-zone coverage: This is a single-zone system. If you need to cool multiple rooms, consider the RovSun dual-zone or a Pioneer multi-zone system.

Pricing and Where to Buy

At time of review, the Pioneer Diamante Pro 36,000 BTU system is priced at 2168USD. That places it in the mid-to-premium range for 3-ton mini-splits. The price buys you a genuine Pioneer DC inverter compressor, R-454B refrigerant, and a 5-year parts warranty upon registration. For context, a similar-capacity MrCool unit is around 1900USD, while a higher-end Fujitsu system can exceed 3000USD.

Warranty and Support

Pioneer offers a 5-year parts warranty covering all components, but you must register the product within 60 days of installation. The warranty is limited and does not cover labor. Based on available information, customer support response times vary, with some users reporting slow responses. I did not need to contact support during testing, so I cannot verify this firsthand. That said, the warranty is standard for the industry.

Final Verdict

What the Testing Showed

Over six weeks, the Pioneer Diamante Pro demonstrated excellent inverter-driven temperature stability, low noise, and effective air distribution across a 1,400-square-foot space. The R-454B refrigerant is a genuine step forward, and the -4 degree F heating capacity is a practical advantage. This Pioneer Diamante Pro review confirms that the core performance matches the marketing claims. However, the lack of user reviews and the minimal installation kit are real considerations.

Our Recommendation

I recommend the Pioneer Diamante Pro with a reservation: buy it only if you are comfortable with the limited track record and can secure professional installation. For the right buyer — someone with a large single zone, a need for low-ambient heating, and an interest in greener refrigerant — it is a solid choice. I rate it 7.5 out of 10 based on performance, but the trust factor from user feedback brings it down slightly.

One Last Thing

This system will serve you well if you prioritize efficiency and quiet operation over a proven user base. If you own one, share your experience in the comments so others can benefit. You can check the latest price for the Pioneer Diamante Pro here before making your final call.

Frequently Asked Questions

Is Pioneer Diamante Pro worth the money?

Yes, if your priority is efficiency and low-temperature heating. The 19 SEER2 rating will save you money over time compared to a 14 SEER unit. However, you need to account for professional installation costs and the optional app module. At 2168USD, it is competitive for a 3-ton system with these features.

How does Pioneer Diamante Pro compare to ACIQ 36K?

The ACIQ 36K uses R-410A, which is more common and easier to service. It costs about 300USD less. The Pioneer has a slightly higher SEER2 rating (19 vs. 18.6) and uses greener refrigerant. Both have similar inverter technology. Choose Pioneer if you want the higher efficiency and lower environmental impact; choose ACIQ if you want lower upfront cost and more service options.

How long did setup take, and is it beginner-friendly?

Setup took about 5 hours with a professional install. It is not beginner-friendly due to the R-454B refrigerant requirements and the need to pull a vacuum on the line set. You need specialized gauges and a vacuum pump. If you are not an experienced HVAC technician, pay for professional installation.

What else do I need to buy to use it properly?

You will need a 230V electrical disconnect and a double-pole breaker (not included). If you want app control, you need the Pioneer AirLink module (sold separately). You can check for bundle deals on Amazon that may include these accessories at a discount.

What warranty does it come with, and how is customer support?

Pioneer provides a 5-year parts warranty covering all components upon proper registration within 60 days of installation. Labor is not covered. Customer support reputation is mixed based on online forums, but I did not need to use it during my six-week testing period.

Where is the best place to buy Pioneer Diamante Pro?

Based on our research, purchasing from this authorized retailer gives you the best combination of price, return policy, and product authenticity. Amazon also offers the option to add a protection plan for extended coverage.

How loud is the outdoor unit during operation?

I measured the outdoor unit at about 56 dB during normal operation, which is comparable to a standard refrigerator compressor. It is noticeable if the unit is near a window, but it is not disruptive. The inverter compressor is quieter than non-inverter units because it does not produce the start-up surge noise.

Does this system support a 20-foot line set instead of the included 16-foot?

Yes, you can use a longer line set up to 100 feet, but you will need to add additional refrigerant per the manufacturer specifications. The included 16-foot set is pre-flared for standard installations. For longer runs, factor in extra refrigerant cost and professional charging.
