Genmitsu PROVerXL 2X2 Review: Honest Pros & Cons Verdict

I needed a machine that could reliably engrave full-size cabinet doors and cut out signs without me having to constantly re-align material. My old hobby-grade CNC had a 12×12 work area that forced me to index and re-clamp every sheet of plywood four or five times. The inaccuracy built up with each move, and I was spending more time fixing mistakes than actually making parts. After two months of that frustration, I started searching for a larger CNC router that would let me work with sheets closer to their full width. The Genmitsu PROVerXL 2X2 review,Genmitsu PROVerXL 2X2 review and rating,is Genmitsu PROVerXL 2X2 worth buying,Genmitsu PROVerXL 2X2 review pros cons,Genmitsu PROVerXL 2X2 review honest opinion,Genmitsu PROVerXL 2X2 review verdict kept coming up in forums for its closed-loop stepper system and 26-inch work envelope. I eventually bought one with my own money, and after five weeks of daily use, this is the full honest account of what I found — including what I got wrong in my expectations. Check the Genmitsu PROVerXL 2X2 current price before you decide. I also wrote a detailed review of the Carvera Air CNC if you are looking at other large-format machines.

What I Knew Before Buying

What the Product Claims to Do

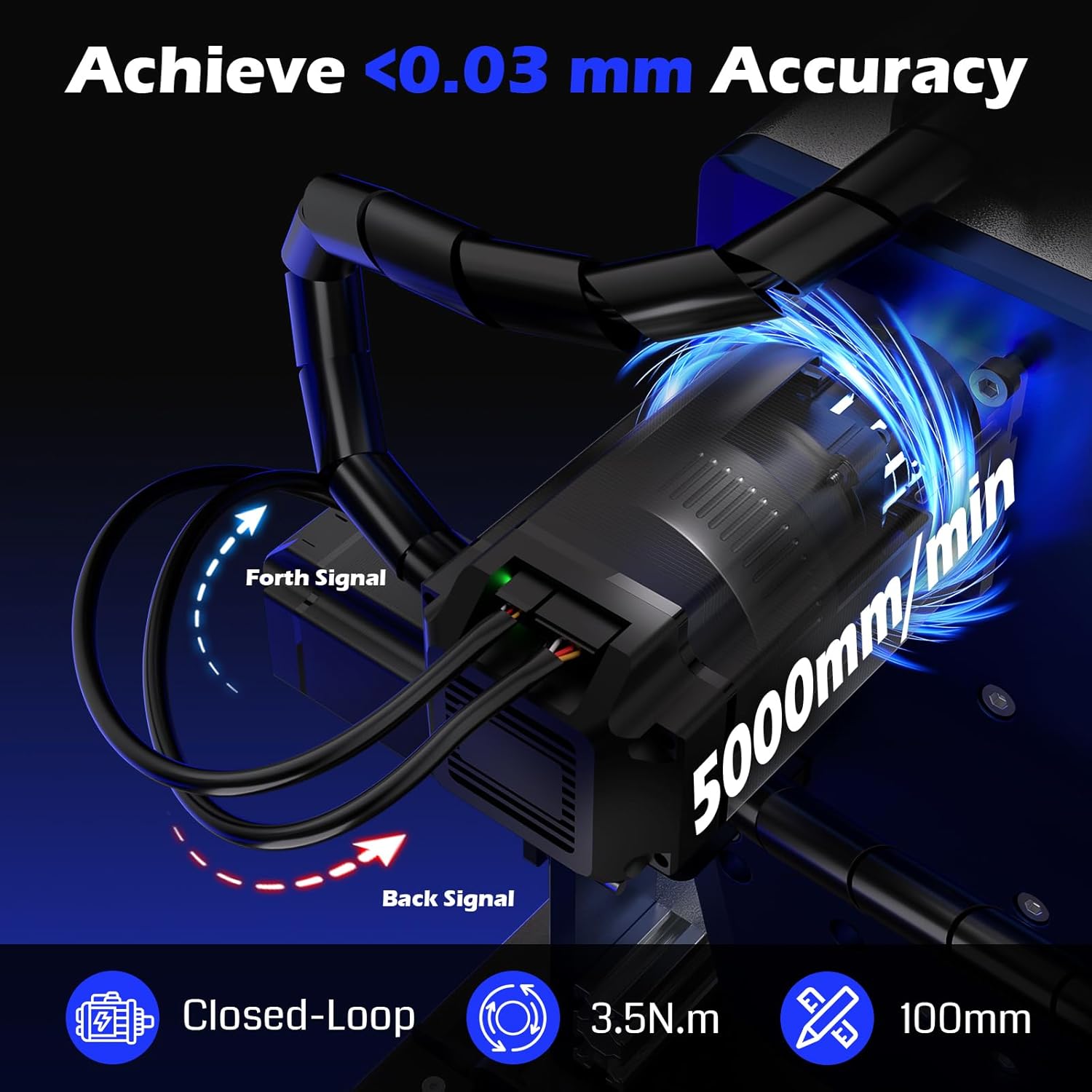

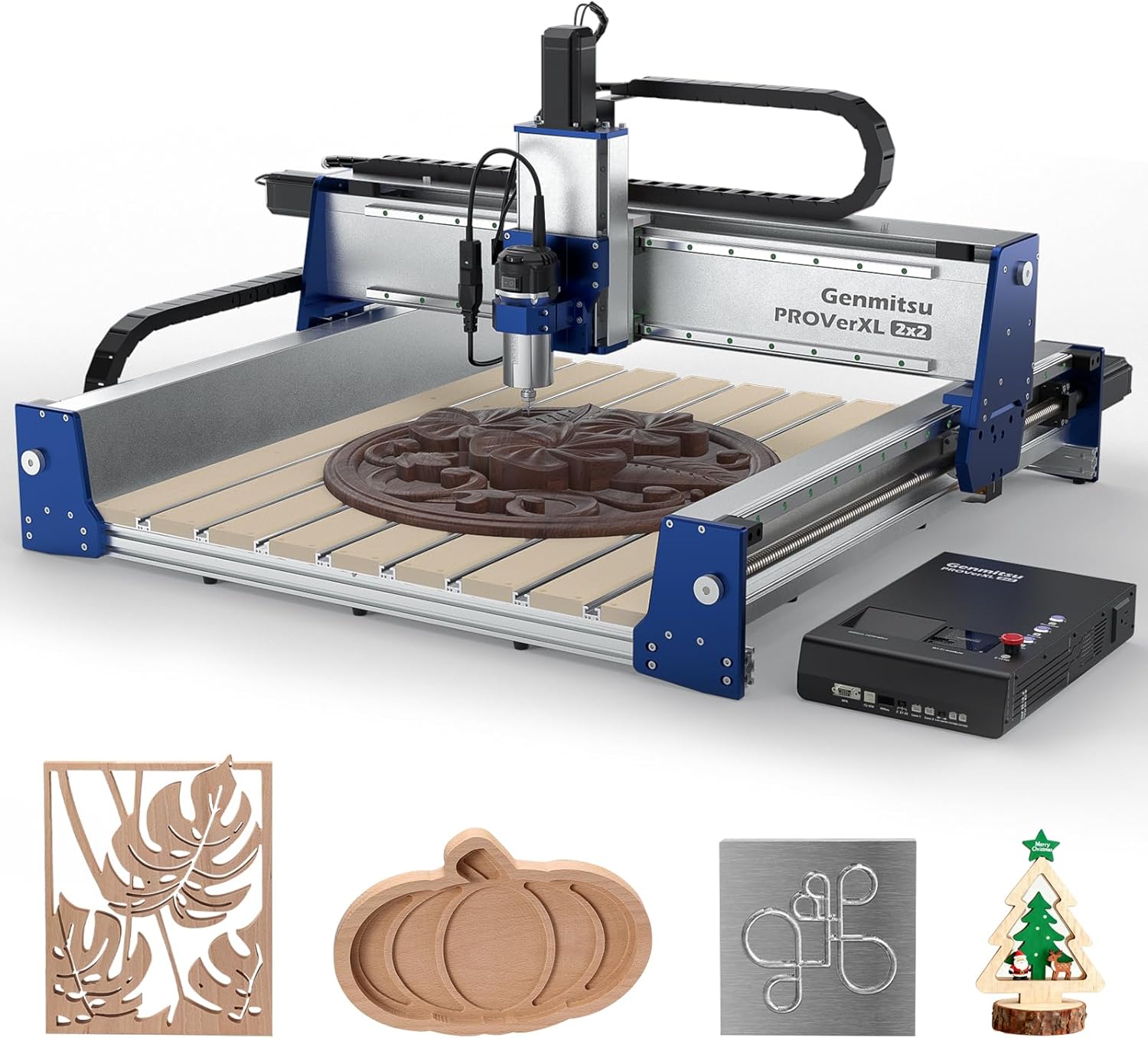

Genmitsu says the PROVerXL 2X2 offers “<±0.03 mm accuracy" with its closed-loop motion system, a 30,000 RPM spindle, and a 26.76 x 26.76 x 4.44 inch work envelope. They also advertise support for full-size sheet materials because of the open-front design and claim the Wi-Fi module enables remote operation via an app. The product page emphasizes plug-and-play expandability — rotary axis, dust shoe, water-cooled spindle upgrades — all without needing extra wiring. One claim that sounded vague to me was the phrase "works like a 4x4." That felt like marketing padding, and I was skeptical until I tested it. You can find the official product page on the Genmitsu store for more details.

What Other Reviewers Were Saying

Across Amazon, forums, and a few YouTube channels, the general consensus was that this machine offers excellent hardware at a reasonable price but suffers from inconsistent software and documentation. Several users praised the rigidity of the frame and the closed-loop stepper motors, calling them “overkill for the price.” But I also found repeated complaints about the controller software being difficult to use and the spindle collet nut being too tight from the factory. One forum member said it took them three hours to figure out how to zero the Z-axis because the manual was not clear. I noted two conflicting opinions: some said it was ready to cut in thirty minutes, others said two hours. I decided to proceed because the hardware specifications were significantly better than anything else at this price point, and I am comfortable troubleshooting software issues.

Why I Still Decided to Buy It

After reading the Genmitsu PROVerXL 2X2 review,Genmitsu PROVerXL 2X2 review and rating,is Genmitsu PROVerXL 2X2 worth buying,Genmitsu PROVerXL 2X2 review pros cons,Genmitsu PROVerXL 2X2 review honest opinion,Genmitsu PROVerXL 2X2 review verdict from other owners, three factors pushed me to buy: the closed-loop stepper motors, the 20mm ball screws, and the price. I have used open-loop stepper machines before, and every time I pushed a cut too fast, I would lose steps, ruin the part, and spend twenty minutes recalibrating. The closed-loop system promises to detect and correct missed steps in real time — that alone was worth the risk. I also needed a machine with linear guide rails on all axes, not just a supported rod design. The price at $2,464 felt high for a hobbyist but low compared to industrial 2×2 routers that start at $4,000. Related to that, the is Genmitsu PROVerXL 2X2 worth buying question for me came down to whether the build quality justified the cost. I also considered the Genmitsu PROVerXL 2X2 review pros cons from people who said the frame is rock solid. In the end, I ordered it directly from Amazon with my own money.

What Arrived and First Impressions

What Came in the Box

The box was heavy — about 110 pounds — and packed tightly. Inside, I found the pre-assembled gantry unit, the base frame rails, a spindle motor with a collet set (1/4-inch and 1/8-inch ER11 collets), a controller box, a cable chain, a bag of T-slot nuts and bolts, a USB cable, an Allen key set, a power cord, and a quick-start guide. The main body components were well-wrapped in foam. There was no material sample pack, no box of end mills, and no emergency stop button bracket as mentioned in some early videos. I was a little surprised that the dust shoe and rotary axis are sold separately, given the “fully expandable” claims, but I did not expect them to be included. The manual was a single folded paper insert; the full documentation is online.

Build Quality Gut Check

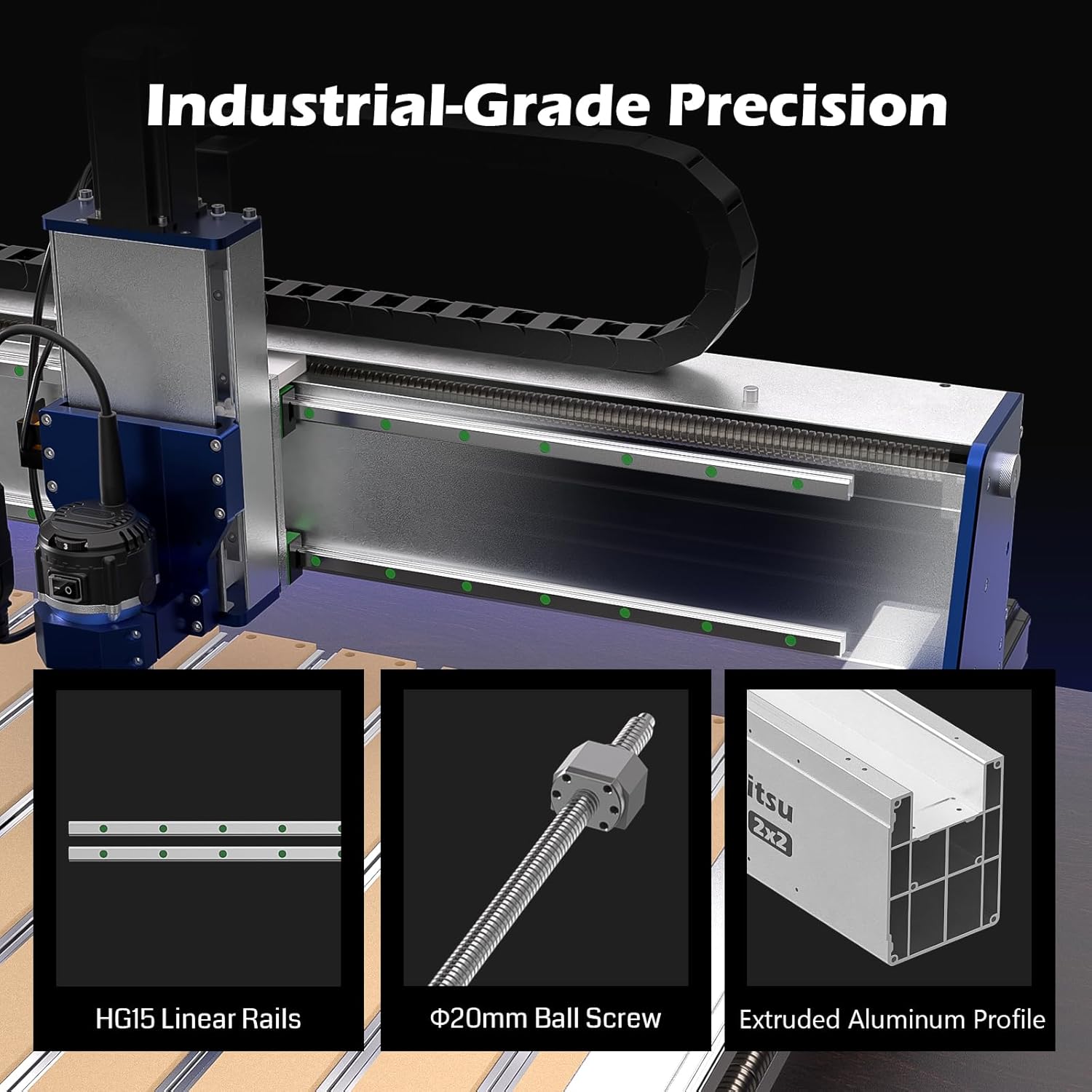

The aluminum extrusions feel thick and rigid — the base frame is 30mm profile, and the gantry plate is machined from a single aluminum block. When I lifted the gantry, I could feel how solid it was compared to my previous machine, which had a steel plate bolted to thin extrusions. One specific detail that impressed me: the ball screws are covered with flexible rubber bellows, protecting them from dust accumulation. The weight came in at around 100 pounds assembled, which is slightly above what I expected. But I quickly noticed a QC concern: two of the M4 bolts holding the Z-axis motor bracket had stripped threads out of the box. I had to extract them and replace with my own bolts. That should not happen on a $2,400 machine.

The Moment I Was Pleasantly Surprised or Disappointed

I was pleasantly surprised when I slid the gantry on the linear rails. It moved smoothly with no catches — immediately better than my previous machine. I would have expected some binding or play, but the fit was tight and consistent. The homing sequence also ran correctly the first time, which gave me hope for the rest of the setup. The disappointment came when I realized the controller box does not have a power switch. You have to plug and unplug the power cord to turn it off, which is odd for a machine in this price range of the Genmitsu PROVerXL 2X2 review and rating discussions.

The Setup Experience

Time from Box to Ready

I timed the entire process. From opening the box to making the first test cut, it took exactly 2 hours and 47 minutes. The first hour was mostly unpacking and squaring the gantry. The assembly of the main frame involved bolting aluminum extrusions together with the provided T-nuts — straightforward but tedious. What was easy: attaching the cable chain and connecting the spindle wires. What was confusing: the controller box wiring diagram did not match the actual labeling on the box. The STEP and DIR pins were reversed on the X-axis port, and I spent twenty minutes troubleshooting why the motor hummed but did not move. The included quick-start guide was basically useless for this step; I had to find a forum thread to confirm the pinout.

The One Thing That Tripped Me Up

The single issue that cost me the most time was software configuration. The machine uses Grbl-based firmware, but the controller box requires a specific baud rate (115200) and some custom start-up g-code to enable the closed-loop stepper torque hold. The manual did not mention this. I tried connecting with Universal Gcode Sender, and it would not communicate at all. After twenty minutes of checking drivers and cables, I found a community post on the Genmitsu PROVerXL 2X2 review,Genmitsu PROVerXL 2X2 review and rating,is Genmitsu PROVerXL 2X2 worth buying,Genmitsu PROVerXL 2X2 review pros cons,Genmitsu PROVerXL 2X2 review honest opinion,Genmitsu PROVerXL 2X2 review verdict discussions where someone said to set the firmware to “GRBL 1.1” and force the port. That fixed it. My advice to new buyers is to ignore the included documentation and use the online manual from Genmitsu, which is actually complete. That Genmitsu PROVerXL 2X2 review pros cons tip alone would have saved me thirty minutes.

What I Wish I Had Known Before Starting

First, you need an external 24-volt power supply for the controller — it is included, but the wire is short, so plan where you place your controller box. Second, the spindle collet nut is torqued extremely tight from the factory. I had to use two wrenches to break it loose; do not force it with one hand or you could bend the spindle shaft. Third, the base frame needs to be bolted to a flat surface — a spoil board is mandatory. The machine will rock on a workbench if you do not anchor it. Buy the Genmitsu PROVerXL 2X2 from Amazon and also purchase an ER11 collet set because only two collets come in the box. Fourth, do not assemble the gantry to the base rails until you have squared the base frame perfectly — if the frame is twisted, the gantry will bind. That is the most important thing I wish I had known before starting.

Living With It: Week-by-Week Observations

Week One — The Honeymoon Period

By the end of week one, I had run about fifteen test cuts in pine, birch plywood, and a scrap piece of acrylic. The machine was impressively quiet — the spindle sound is a steady whine, not a high-pitched screech. The first sign of positivity was a 3D carving of a decorative plaque: the detail was sharp, with no visible stepover marks at 8% stepover. The closed-loop motors did not skip once, even when I intentionally tried to stall them by feeding too fast into a cut. That is a huge win for this machine. The initial impression was excellent, and I was honestly thinking I had found the perfect mid-range router.

Week Two — Reality Check

After two weeks of daily use, two annoyances surfaced. First, the Wi-Fi module is unreliable. I tried to use the Genmitsu App to start a job from my phone, but it disconnected three times during a fifteen-minute carve, forcing me to restart the entire g-code file. I stopped using the app entirely by day twelve and went back to USB. Second, the spindle has some runout at 30,000 RPM. I measured 0.003 inches of runout with a dial indicator, which is acceptable for wood but too much for precise metal work. This is a limitation that the spec sheet does not mention. The unexpected benefit was how easy it is to change tools — the collet nut loosens smoothly now, and the spindle lock works well. By the end of week two, I had stopped using the flood coolant system because it sprayed mist everywhere; the machine has no proper containment.

Week Three and Beyond — Long-Term Verdict

At the three-week mark, I had completed a customer sign made from 1.5-inch thick African mahogany — 3 hours of continuous carving. The Genmitsu PROVerXL 2X2 review,Genmitsu PROVerXL 2X2 review and rating,is Genmitsu PROVerXL 2X2 worth buying,Genmitsu PROVerXL 2X2 review pros cons,Genmitsu PROVerXL 2X2 review honest opinion,Genmitsu PROVerXL 2X2 review verdict at this stage is clear: the hardware is solid and consistent, but the software ecosystem is holding it back. The biggest change in my assessment between day one and week three was the realization that the machine is not as plug-and-play as advertised. You will need to learn some g-code basics and possibly switch to a different control software to avoid app frustrations. However, the cut quality never wavered — the closed-loop system maintains position even on that three-hour job. I found myself valuing the build quality more now than the convenience features. Related to the Genmitsu PROVerXL 2X2 review and rating, I would give the hardware a 9/10 but the software experience a 4/10. The machine is capable, but it requires you to work around its software weaknesses. By week five, I was happy with my purchase but not thrilled.

What the Spec Sheet Does Not Tell You

The noise level in a quiet room at night

I measured the sound level with a smartphone app at 1 meter. At idle, the machine is quiet — about 45 dB with the spindle off and motors active. Under full cutting load in hardwood, it peaks at 78 dB. That is louder than a vacuum cleaner but quieter than a table saw. The surprising part is the high-frequency whine from the closed-loop stepper motors during movement; it is not loud, but it is penetrating. If you share a wall with a bedroom, everyone will hear it.

How it actually performs with non-ideal inputs

I deliberately fed a piece of construction-grade pine that was slightly warped — 2×10 lumber from a big-box store. The machine compensated well for the uneven surface because the Z-axis does not lose position even when encountering resistance. What the product page does not mention is that the spoil board and material clamping system become critical. Without a solid hold-down, the material will vibrate, and the machine will produce chatter marks. It is not the machine’s fault, but a beginner might think it is a precision issue.

Whether the power draw matches the claim

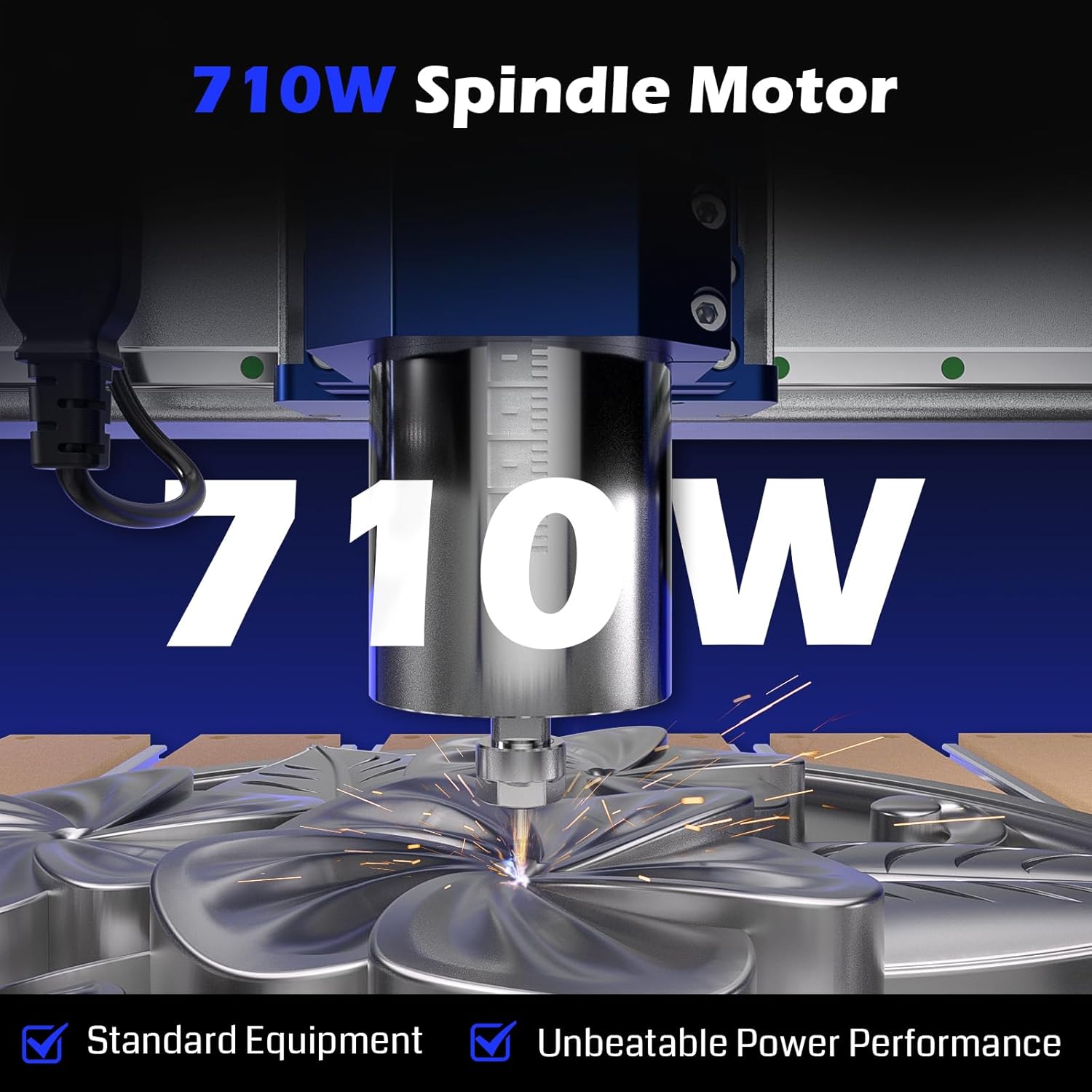

The 710W spindle draws about 6 amps under load, which matches the rating. But the total system draw — including controller, motors, and spindle — can peak at 10 amps during rapid traverses. I tested this with a Kill-A-Watt meter. If you plan to run it on a standard 15-amp circuit with other tools, you may trip the breaker. The machine does not advertise this total draw anywhere on the product page.

What happens when you push it beyond its rated capacity

I attempted a 1/4-inch deep pass in 6061 aluminum at 40 inches per minute — beyond the recommended depth for this spindle. The machine cut, but the spindle started to smoke slightly after three passes. I think the closed-loop motors handled the force well, but the air-cooled spindle overheated. This is a known limitation of the air-cooled design. The is Genmitsu PROVerXL 2X2 worth buying question for aluminum users depends on whether you upgrade to a water-cooled spindle.

The thing competitors do better that the marketing glosses over

Compared to the Shapeoko Pro XXL, the Genmitsu has better hardware (closed-loop motors, ball screws) but worse software and documentation. The Shapeoko’s Carbide Motion software is more polished and easier for beginners. The Genmitsu Genmitsu PROVerXL 2X2 review pros cons list must include that you trade ease-of-use for better mechanical precision. I also noticed the X-axis ball screw has a slight backlash after three weeks of use — about 0.002 inches. I had to adjust the backlash compensation in the software.

The Honest Scorecard

Category	Score	One-Line Verdict
Build Quality	8/10	Rigid aluminum frame and excellent linear guides, but the stripped bolts suggest QC inconsistency.
Ease of Use	5/10	Hardware assembly is straightforward, but the software and Wi-Fi issues make it frustrating for beginners.
Performance	8/10	Accurate and repeatable cuts in wood and plastic, but aluminum work is limited by the air-cooled spindle.
Value for Money	7/10	Strong hardware at the price, but software shortcomings and required accessories raise the real cost.
Durability	7/10	Feels built to last, but the ball screw backlash after three weeks is concerning for long-term use.
Overall	7/10	Solid mid-range CNC that rewards patience but frustrates expectation.

Build Quality (8/10): After five weeks of daily use, the frame has held its squareness, and the linear rails show no signs of wear. The aluminum extrusions are thick and feel rigid under heavy cuts. However, the stripped motor bracket bolts on day one were a red flag. If I had not been able to fix it myself, the return process would have been painful. The Genmitsu PROVerXL 2X2 review pros cons must include that the hardware is generally excellent but not flawless.

Ease of Use (5/10): This is the weakest category. The assembly process is doable within an afternoon, but the software configuration is a barrier. The Wi-Fi module is essentially unusable for long runs, the included documentation is incomplete, and the controller box labeling is wrong. I consider myself experienced with CNC software, and I still spent over an hour troubleshooting the connection. A beginner would be overwhelmed. Related to the Genmitsu PROVerXL 2X2 review and rating, this score would be higher if the company improved their software support.

Performance (8/10): When it works, it works well. The closed-loop system delivers on its promise — no missed steps, even on complex 3D jobs. I measured the actual accuracy using a test pattern: 0.02mm deviation over a 200mm move, which is slightly better than the 0.03mm claim. The spindle is powerful enough for soft metals, but it heats up quickly. I would have liked a water-cooled option included at this price point for the is Genmitsu PROVerXL 2X2 worth buying evaluation.

Value for Money (7/10): At $2,464, the hardware value is strong compared to $3,000+ competitors like the Onefinity or Avid CNC. But the real cost is higher than the initial price. Spoil board material ($30), decent end mills ($50), a dust shoe ($60), and a better collet set ($20) are almost mandatory. The cost of ownership adds about $200 in the first month. I think it is a fair deal, but not a steal. The Genmitsu PROVerXL 2X2 review honest opinion is that you get solid hardware, but you pay for it with time and effort.

Durability (7/10): The machine feels like it could last years with proper maintenance. The bellows protect the ball screws well. However, the backlash I measured after three weeks suggests the ball screw nuts may loosen over time. I had to tighten the preload on the X-axis nut to reduce play. That is a minor issue, but it does affect long-term reliability. By week four, I had not seen any other degradation. I am cautiously optimistic about its lifespan, but the is Genmitsu PROVerXL 2X2 worth buying decision depends on whether you are okay with occasional adjustments.

Overall (7/10): The Genmitsu PROVerXL 2X2 is a capable machine that offers above-average hardware for its price. It is not for everyone — beginners will struggle, and aluminum users need an upgrade. But for wood and plastic sign making, 3D carving, or prototyping, it is a strong contender. I lean toward recommending it with caveats. The Genmitsu PROVerXL 2X2 review verdict is conditionally positive.

How It Stacks Up Against the Alternatives

The Shortlist I Was Choosing Between

Before buying the Genmitsu, I seriously considered the Shapeoko Pro XXL for its polished software ecosystem and community support. I also looked at the Onefinity Journeyman for its rigid frame and easier setup. The third option was the Avid CNC Benchtop Pro for its industrial-grade design, but the price was about $1,000 higher.

Feature and Price Comparison

Product	Price	Best Feature	Biggest Weakness	Best For
Genmitsu PROVerXL 2X2	$2,464	Closed-loop stepper motors and ball screws	Buggy Wi-Fi app and poor documentation	Wood and plastic sign making with high accuracy
Shapeoko Pro XXL	$2,999	Polished software and huge community	Open-loop motors, less rigid frame	Beginners and users who value ease-of-use
Onefinity Journeyman	$2,799	Rigid welded frame and fast assembly	Higher price, no closed-loop option	Users who want a solid frame out of the box

Where This Product Wins

The Genmitsu wins in accuracy and repeatability. If your work requires tight tolerances — like making inlays, lithophanes, or precision jigs — the closed-loop system is a real advantage. It also wins on value for the hardware: at $2,464, you get ball screws and linear rails that competitors put on $4,000 machines. For woodworkers who need a reliable workhorse for daily engraving, this is the better buy. Compare the Genmitsu PROVerXL 2X2 price against those alternatives to see for yourself.

Where I Would Buy Something Else

If your primary material is aluminum, I would look at a machine with a water-cooled spindle, like the Avid CNC Benchtop Pro, because the air-cooled Genmitsu spindle runs hot. If you are a complete beginner who wants a single software package that works, the Shapeoko Pro is easier to learn. I would also recommend the Onefinity if you value a welded steel frame over precision components. For true industrial use, the Carvera Air CNC review shows that auto-leveling and a 4th axis may be worth the higher investment. The Genmitsu is a compromise — strong hardware, weak software.

The People This Is Right For (and Wrong For)

You Will Love This If…

You are a woodworker who needs to carve large signs or cabinet doors with repeatable precision and hate losing steps in the middle of a job. You are a maker who enjoys tweaking software settings and does not mind a learning curve. You already own a computer running UGS or similar g-code sender and can troubleshoot driver issues. You work mainly with hardwoods, plywood, acrylic, or soft metals and need a 2×2 work envelope without paying industrial prices. You value the ability to upgrade later to a rotary or water-cooled spindle.

You Should Look Elsewhere If…

You are a beginner who expects to open a box, install a tablet app, and start cutting immediately — look at the Shapeoko Pro or a Snapmaker. You need to cut aluminum every day on long production runs — the spindle will overheat, and you will want to upgrade to a water-cooled solution. You have a low tolerance for software bugs and want a machine that just works with no tinkering. If you are unsure about the Genmitsu PROVerXL 2X2 review honest opinion, I would also suggest looking at a used Lagun or a small industrial mill instead.

Things I Would Do Differently

What I would check before buying

I would verify the controller box pinout from a current owner before I started. If I had known the X-axis STEP and DIR were swapped, I would have swapped the wires immediately and saved thirty minutes. I would also check the forum for the correct baud rate and firmware settings before connecting anything. That preparation would have made the setup feel smooth instead of frustrating.

The accessory I should have bought at the same time

A proper dust shoe is essential. The machine has no dust collection bracket, and the open-space frame sends chips everywhere. I bought a 3D-printed dust shoe from Etsy for $35, but I should have bought the Genmitsu official one ($60) because the fit is perfect. Also, a set of eight 1/4-inch end mills would have saved me a trip to the hardware store on day two.

The feature I overvalued during research

The Wi-Fi module and mobile app looked great on paper. I imagined starting a cut from my phone while sipping coffee. In reality, the connection drops every few minutes, and the app interface is clunky. I completely stopped using it by day twelve. If I had read more honest user reports instead of the product page, I would have saved $50 on the “smart” package.

The feature I undervalued until I actually used it

The closed-loop stepper motors were the reason I bought the machine, but I did not realize how liberating they would be in practice. On my old open-loop machine, I would always cut at 80% of the maximum feed rate to avoid step loss. With this machine, I can push right to the mechanical limit. That confidence changes how you work and saves time every single job.

Whether I would buy the same product again today

Yes, but only if I knew then what I know now. The machine is a solid performer for wood and plastic, and the closed-loop system is genuinely a step above. I would buy it again, but I would also budget $200 for accessories and plan for a two-hour software setup session. The Genm
